Introduction

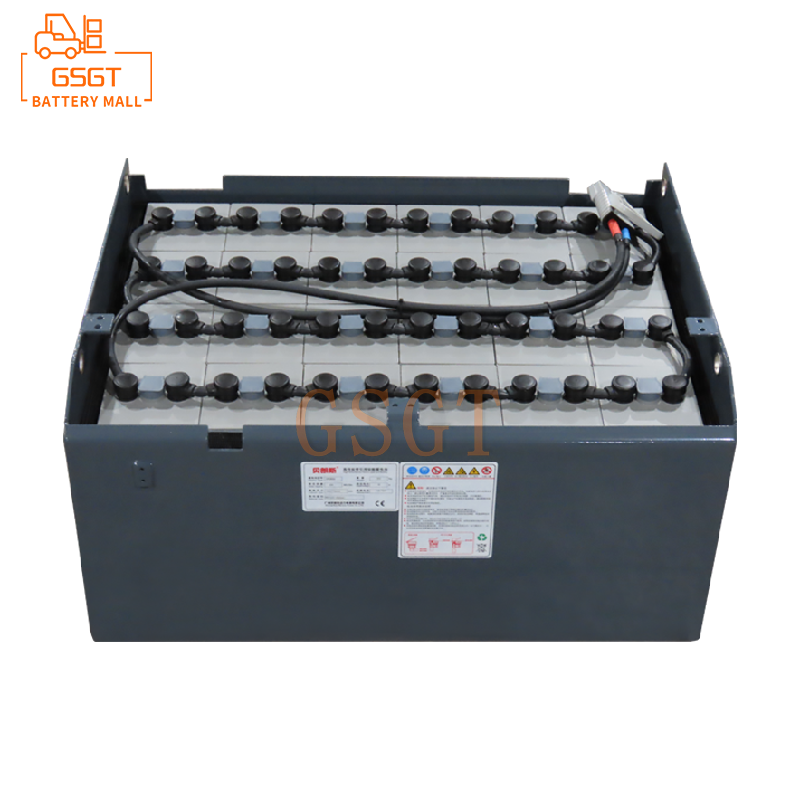

As an important handling equipment in logistics, warehousing and other industries, the performance of lead-acid batteries, one of the power sources of forklifts, directly affects the working efficiency and operational stability of forklifts. As the usage time increases, lead-acid batteries may experience problems such as capacity attenuation and decline in charging and discharging performance. At this point, it is necessary to replace the battery in a timely manner to ensure the normal operation of the forklift. This article will provide a detailed introduction to the entire process of replacing lead-acid batteries in forklifts and related precautions.

1. Preparations before Replacement

(1) Determine whether the battery needs to be replaced

1. ** Observe the service life ** : Generally, the service life of lead-acid batteries in forklifts is 2 to 3 years. If the forklift is frequently used and has reached or approached this service life, and the battery performance has significantly declined, replacement should be considered. For instance, if a forklift in a certain logistics warehouse has been in use for 2.5 years and its working time is significantly reduced after charging, it is very likely that the battery needs to be replaced.

2. ** Check the battery level ** : During the normal operation of the forklift, if you find that the battery drains too quickly, the charging frequency increases significantly, or the forklift starts with obvious weakness, or the battery level indicator light on the dashboard shows abnormal, these could all be signals that the battery needs to be replaced. If a forklift, which was originally fully charged and could work for 8 hours, can only operate for 4 to 5 hours now and cannot be improved even after multiple deep charges, it is necessary to check whether the battery needs to be replaced.

3. ** Check the appearance condition ** : Open the battery compartment and inspect the battery casing for any cracks, deformations, leaks, etc. If these phenomena occur, it indicates that the battery is damaged and must be replaced. At the same time, check if there are any signs of severe corrosion or loosening on the battery terminals. If the problem with the terminals is serious, it will also affect the battery performance and the battery may need to be replaced.

(2) Select the appropriate battery

1. ** Matching Voltage and Capacity ** : Common voltages for forklift lead-acid batteries include 24V, 48V, 80V, etc. When choosing a new battery, it is essential to ensure that its voltage is consistent with the original battery of the forklift; otherwise, it cannot supply power normally. If the forklift needs to operate continuously for a long time, a battery with a larger capacity should be selected to ensure sufficient endurance. For forklifts that frequently move goods in logistics warehouses, choosing batteries with larger capacity can reduce the number of charging cycles and improve work efficiency.

2. ** Consider battery size ** : The size of the new battery should perfectly match the battery compartment of the forklift. Batteries that are too large cannot be installed, while those that are too small may shake inside the battery compartment, affecting the safety of use. Before purchasing a new battery, it is necessary to accurately measure the size of the battery compartment and compare it with the specifications of the new battery.

3. ** Choose reliable brands ** : There are numerous lead-acid battery brands on the market, with varying qualities. To ensure battery performance and service life, products from well-known brands should be chosen. Well-known brands usually have stricter production processes and quality control systems, ensuring better product quality.

(3) Prepare necessary tools and protective equipment

1. ** Tool Preparation ** : Wrenches, screwdrivers, special battery handling tools, brushes, and cleaning agents need to be prepared.

2. ** Protective Equipment Preparation ** : To ensure the personal safety of the operators, anti-slip gloves, safety shoes and goggles must be worn.

3. Installation Steps for New Batteries3. Installation Steps for New Batteries

(1) Safe parking and power-off

1. ** Select an appropriate parking location ** : Drive the forklift to a flat, dry, well-ventilated area away from fire sources and flammable materials. Pull up the handbrake, lower the forks to the ground, and ensure the forklift is in a stable state to prevent movement during battery replacement.

2. ** Turn off all power sources ** : Turn off the ignition switch of the forklift and cut off the power supply of all electrical equipment, including vehicle lights, warning lights, etc. Some forklifts may also need to have their keys removed to ensure that the vehicle is not accidentally started. At the same time, pay attention to observing the dashboard to ensure that all indicator lights are off and confirm that the power supply has been completely cut off.

(2) Disconnect the battery connection

1. First, disconnect the negative terminal: Use a wrench to loosen the bolt on the negative terminal post and remove the negative cable from the battery terminal post. During operation, it is necessary to avoid the wrench coming into contact with the positive terminal of the battery or other metal parts to prevent short circuits from generating sparks and causing danger.

2. ** Break the positive terminal again ** : Follow the same method to loosen the bolts on the positive terminal post and remove the positive cable. Attention should also be paid to operational safety to avoid short circuits. At this point, the electrical connection of the battery has been completely disconnected.

(3) Remove the battery fixing device

1. ** Identify the fixation method ** : The battery fixation methods may vary among different forklift models. The common ones include bolt fixation, strap fixation or snap fixation. Some forklifts may use a combination of multiple fixing methods.

2. ** Disassemble the fixing device ** : If it is fixed by bolts, use the corresponding wrench to unscrew the fixing bolts; If the strap is fixed, unfasten the buckle of the strap or loosen the adjusting device of the strap. For snap fixation, use a screwdriver or other suitable tools to open the snap. During the disassembly process, the bolts, clips and other components removed should be properly stored to prevent loss.

(4) Remove the old battery

1. ** Select appropriate handling tools ** : As the lead-acid batteries of forklifts are relatively heavy, usually over 200kg, manual handling is strictly prohibited. Forklift forks or dedicated battery handling carts should be used. If forklift forks are used for transportation, the distance between the forks should be adjusted properly to match the fork slots at the bottom of the battery.

2. ** Smoothly Remove the battery ** : Carefully insert the handling tool into the fork slot or lifting position at the bottom of the battery, and slowly lift the handling tool to remove the battery from the battery compartment. When moving the battery, keep it stable and avoid tilting, shaking or dropping. For instance, when using a battery transporter, align the lifting device of the transporter with the bottom of the battery, lift it slowly, and then smoothly transport the battery out of the battery compartment and place it in a safe location, such as a dedicated battery storage area, where protective measures should be taken to prevent battery damage.

3. Installation Steps for New Batteries

(1) Check the status of the new battery

1. ** Electrolyte Level Check (Lead-acid Battery) ** : For lead-acid batteries, open the cover of the battery's liquid filling hole and check if the electrolyte level is within the normal range. Under normal circumstances, the electrolyte should be at a certain height above the plates or separators, generally 10 to 15mm. If the liquid level is too low, distilled water or special lead-acid battery replenishment solution needs to be added. For example, use a graduated pipette to measure the electrolyte level. If the level is lower than the standard value, slowly add distilled water until the level reaches the normal range.

2.** Battery Appearance Inspection ** : Carefully inspect the casing of the new battery for any damage, deformation, leakage, etc., and check if the terminals are corroded or loose. Make sure the battery has a good appearance and no quality problems. For instance, check if there are any cracks or scratches on the battery casing, if the surface of the terminal post is smooth, and if there is any oxide layer.

(2) Clean the battery compartment

1. ** Remove Debris ** : Use a brush to clean the dust, debris, corrosive substances, etc. in the battery compartment. These impurities may affect the installation and use of new batteries, and may even cause short circuits or corrosion of the batteries.

2. ** Remove corrosion marks ** : If there are corrosion marks in the battery compartment caused by leakage from old batteries or other reasons, clean them with a cleaning agent such as baking soda water. Dip a brush in the cleaning agent, gently scrub the corroded area, then rinse it clean with clear water and dry it with a clean cloth. If there are white corrosive substances at the bottom of the battery compartment, scrubbing it with baking soda water can effectively remove the corrosive substances and prevent them from further corroding the battery compartment.

(3) Insert a new battery

1. ** Align with the installation position ** : Carefully move the new battery to the battery compartment and slowly align the battery with the installation position of the battery compartment. Ensure that the direction of the battery terminals correctly corresponds to the wiring positions inside the battery compartment, and that the fixing holes or fork slots at the bottom of the battery are aligned with the fixing devices inside the battery compartment.

2. ** Slowly Push the battery in ** : Use handling tools or manual assistance to slowly push the battery into the battery compartment until it is completely in place. During the pushing process, be careful to avoid the battery colliding with the edge of the battery compartment, which could damage the battery or the battery compartment. When manual assistance is used, multiple people work together to smoothly push the battery into the battery compartment.

(4) Fix the new battery

1. ** Install the fixing device ** : Install the battery fixing device in the reverse order of disassembly. If it is fixed by bolts, insert the bolts into the fixing holes at the bottom of the battery and the corresponding screw holes in the battery compartment. Use a wrench to tighten the bolts, but do not over-tighten them to avoid damaging the battery casing or the fixing device. For the strap fixation, pass the strap through the fixing groove at the bottom of the battery, adjust the tightness of the strap, and make it firmly fix the battery. If the clip is fixed, align the clip with the battery compartment and the slot on the battery, and press the clip firmly to make it secure.

2. ** Check the firmness of the fixation ** : After the fixation is completed, gently shake the battery to check if it is installed firmly and if there is any loosening. Make sure that the battery does not shift or shake during the operation of the forklift. For example, push the battery left and right, front and back with your hand to feel whether it is fixed and stable.

(5) Connect the battery cable

1. ** Connect the positive terminal first ** : Align the connector of the positive cable with the positive terminal post of the battery, and use a wrench to tighten the connecting bolts to ensure a firm connection. During the tightening process, pay attention to the tightening force of the bolts to avoid poor contact due to excessive looseness or damage to the terminal posts due to excessive tightness.

2. ** Connect to the negative terminal ** : Use the same method to connect the negative terminal cable to the negative terminal post of the battery and tighten the bolts. After the connection is completed, a thin layer of Vaseline or anti-oxidation grease can be applied to the terminal posts and cable joints to prevent corrosion of the terminal posts.

4. Inspection and Testing after Replacement

(1) Visual inspection

1. ** Battery Installation Inspection ** : Recheck the installation of the battery in the battery compartment to ensure that the battery is securely installed and that the fixing devices are not loose or deformed. There is no interference between the battery and the components of the battery compartment, and the battery casing is undamaged. For example, check whether the fixing bolts at the bottom of the battery are tightened and whether the battery is kept at an appropriate distance from the edge of the battery compartment.

2. ** Cable Connection Inspection ** : Check whether the connection of the battery cable is correct and firm, and whether the cable is damaged or twisted. Check whether the terminal post is closely attached to the cable joint without any sign of looseness. If you gently pull the cable with your hand, check if the joint is firm and at the same time inspect the outer sheath of the cable for any scratches or cracks.

(2) Electrical system inspection

1. ** Voltage measurement ** : Use a multimeter to measure the voltage of the battery and confirm whether it is within the normal range. For common forklift lead-acid batteries, such as 48V batteries, the measured voltage should be close to or slightly higher than 48V. If the voltage is too low, it might be due to poor battery connection or a problem with the battery itself. Further inspection is required.

2. ** Circuit Conduction Check ** : Turn on some electrical equipment of the forklift, such as the headlights and instrument panel, and observe whether the equipment is working properly. If some devices fail to work properly, there may be problems with open circuits or short circuits. It is necessary to check the cable connections, fuses and other components. If the car lights are turned on and they do not light up, check whether the bulbs are damaged and whether the circuit connected to the bulbs is conductive.

(3) Forklift start-up and trial operation

1. ** Start the forklift ** : After completing the above checks, start the forklift and observe whether the indicator lights on the dashboard are displayed normally and if there are any abnormal alarm messages. During the start-up process, pay attention to whether the start-up sound and start-up time of the forklift are normal.

2. ** Function Test ** : Conduct basic function tests such as forward movement, backward movement, and lifting of the forklift. During the testing process, pay attention to whether the forklift operates smoothly and whether all its movements are flexible and smooth. If you operate the lift handle of the forklift, observe whether the lifting and lowering of the forks is smooth and whether there is any jamming. Drive the forklift forward and backward to feel whether the vehicle is moving normally.

5. Summary

The replacement of lead-acid batteries in forklifts is a task that requires careful operation. From the preparations before replacement, the removal of old batteries, the installation of new batteries, to the inspection and testing after replacement, as well as the proper disposal of old batteries, every step is of vital importance. Operating strictly in accordance with the correct procedures and methods can not only ensure the normal operation of the forklift, extend the service life of the battery, but also guarantee the safety of the operators and the protection of the environment.
